Assembly

Sub Assembly

HV Wooding is increasingly partnering with customers to conduct additional operations, provide complete kits or supply sub assemblies direct to line or to the customer’s warehouse.

Our advanced sub assembly facility allows our customers to outsource the assembly at low risk, and focus on their core business activities, secure in the knowledge that we will provide them with a fast, cost-effective service. Reducing inventories, part numbers and supply base saves time and effort and can also result in significant cost savings.

Our full range of sub assembly services comprises:



Mechanical Sub Assembly

  • Resistance welding
  • Capacity discharge welding
  • Tapping and screw insertion
  • Rotary table and manual assembly
  • Motor lamination assemblies & specialising in aerospace and motorsport markets



General Sub Assembly

  • Cross material type assembly & metal and plastic components
  • Pressed and machined components
  • Finished products
  • Direct to warehouse & including part marking, bar-coding and packaging to customer requirements

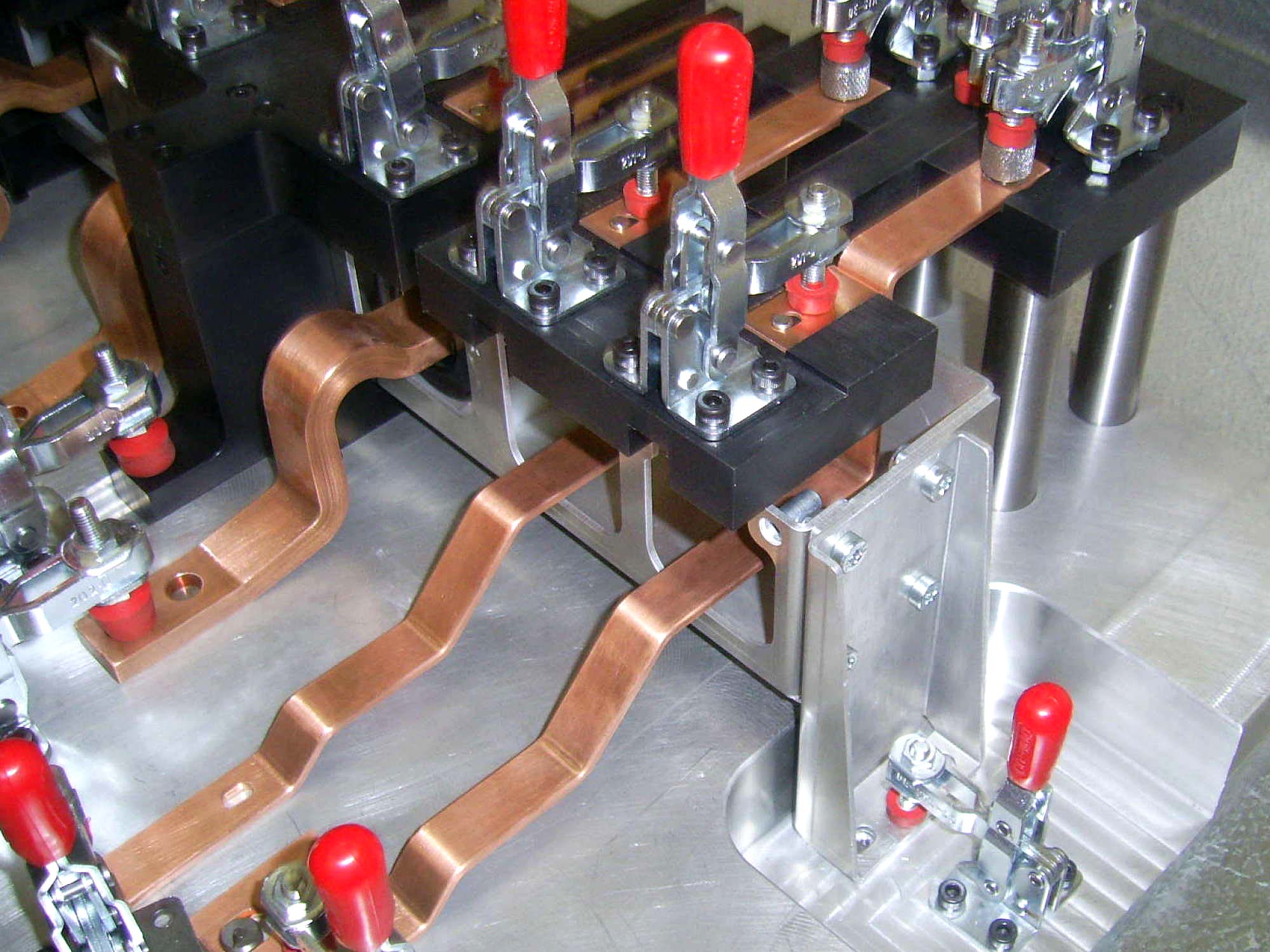

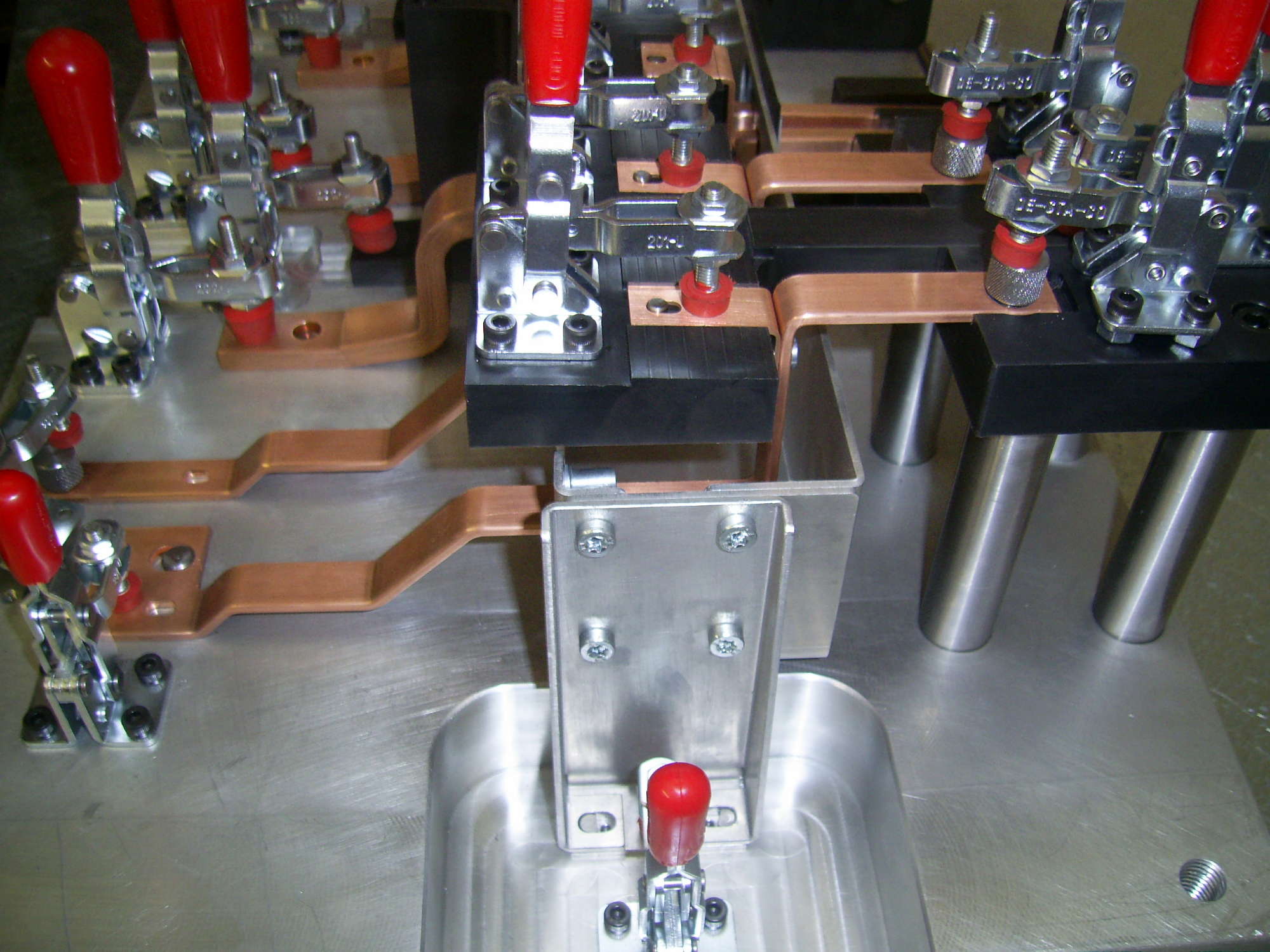

Busbar Sub Assembly

  • Pemming & insertion of studs, nuts, helicoils etc
  • Sleeving & insulation materials
  • Earth bar assemblies
  • Pre-packaged kits direct to line side/warehouse
  • Multi type busbar assemblies
HV Wooding specialise in precision engineering offering Mechanical Sub Assembly, Busbar Sub Assembly & General Sub Assembly in the UK. HV Wooding specialise in precision engineering offering Mechanical Sub Assembly, Busbar Sub Assembly & General Sub Assembly in the UK.

Our Assembly services follow the same rigorous Quality programme as all in house manufacturing – find out more.

Get in touch with our team to discuss your requirements. You can view our latest Plant List here.

Find out more:

To explore how we could make a difference to your organisation, contact us for a free assessment of potential opportunities.







    Contact us today
