Data Centre Busbars

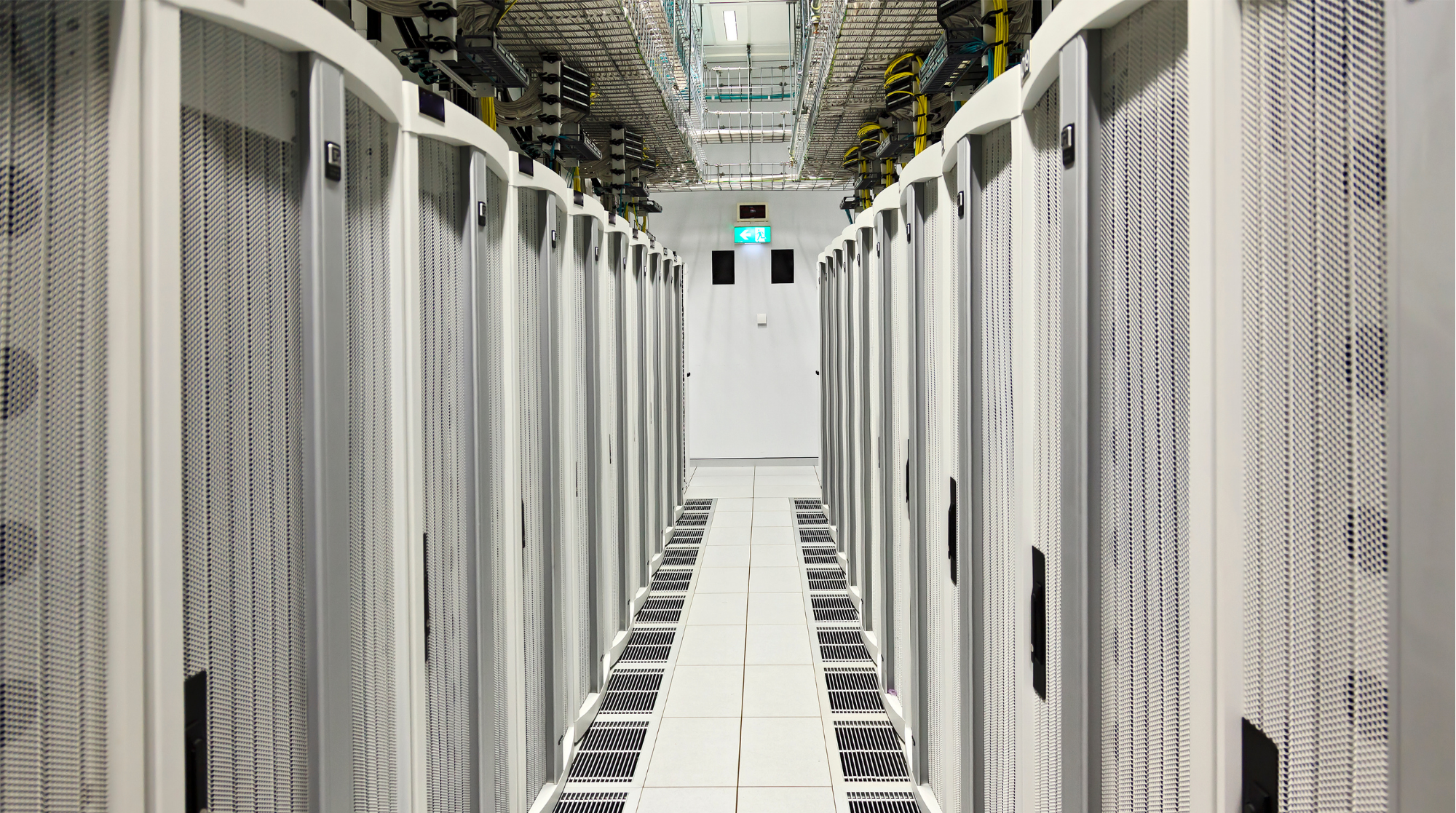

A Global Social Media Platform were looking to enhance the performance, reliability and efficiency of their Data Centre Operation. This project involved HV Wooding in the design optimisation and manufacture of Busbars.

Challenges

1.Demanding technical specification, tolerances, electroplating spec.

2.Material (Copper) specification higher than international standards.

3.Ensure plating specification would confirm to electrical requirements.

4.Production solution needed to include protective cover and returnable packaging.

Solutions

  • Sourced raw material to dimensional and surface finish requirements.
  • Produced a range of samples for electrical testing (several options).
  • Developed production solution for punching, surface finish, electroplating and testing.
  • Designed and implemented returnable packaging solution.
  • Robust supply chain in place for worldwide supply.

Impacts

1.Highly improved technical and commercial solution.

2.Supported customer in achieving faster assembly times.

3.Repeatable process in place, no non conforming parts.

4.Reliable supply chain in place for deliveries worldwide.

Added Value

1. Simplified supply chain and introduced a single sourced supplier while also providing a 20% total cost benefit.

2. Customer benefitted by working with HV Wooding technical resource to give substantial technical improvement.

3. Set exceptional quality standards and reliability for ongoing supply and future product development .

Busbar Manufacture

H V Wooding specializes in the production of copper, aluminium, and cuponal busbars for use in switchgear components, control panels, panel boards, fusegear, and transformers, catering to a diverse range of industries including Switchgear, Railway, Renewable Energy, Marine, Data Centre, and Power Electronics sectors.

Laser Cutting

Applications for this service are wide-ranging including Battery Terminals and Contacts within the growing Hybrid & Electric Vehicle sector to Busbars for Power Electronics, Electrical Systems and Transportation.

Electroplating & Powder Coating

Specialists in sub-con electroplating. Experienced in-house electroplating services including - Tin Rack Plating, Silver Rack Plating, Zinc Rack Plating, Nickel Rack Plating, Tin Barrel, Silver Barrel, & Zinc Barrel. Owing to increased capacity we are now offering the following finishes to the general market. We offer specialist Powder Coating for busbars for the Electric Vehicle market.

Presswork & Tooling

Precision presswork / metal stamping delivered in volume and on time. We have 50 years’ experience and expertise of providing economic presswork solutions to major names within the electrical switchgear, electronic, power generation, medical, marine and automotive industries.

Assembly

Our advanced sub assembly facility allows our customers to outsource the assembly at low risk, and focus on their core business activities, secure in the knowledge that we will provide them with a fast, cost-effective service. Reducing inventories, part numbers and supply base saves time and effort and can also result in significant cost savings.

Data Centres

Supporting our customers manufacturing world class products in the Data Centre sector, producing Busbars for switchboards, distribution boards, battery banks and IT infrastructure solutions.
